Epic19

Here comes the epic view.

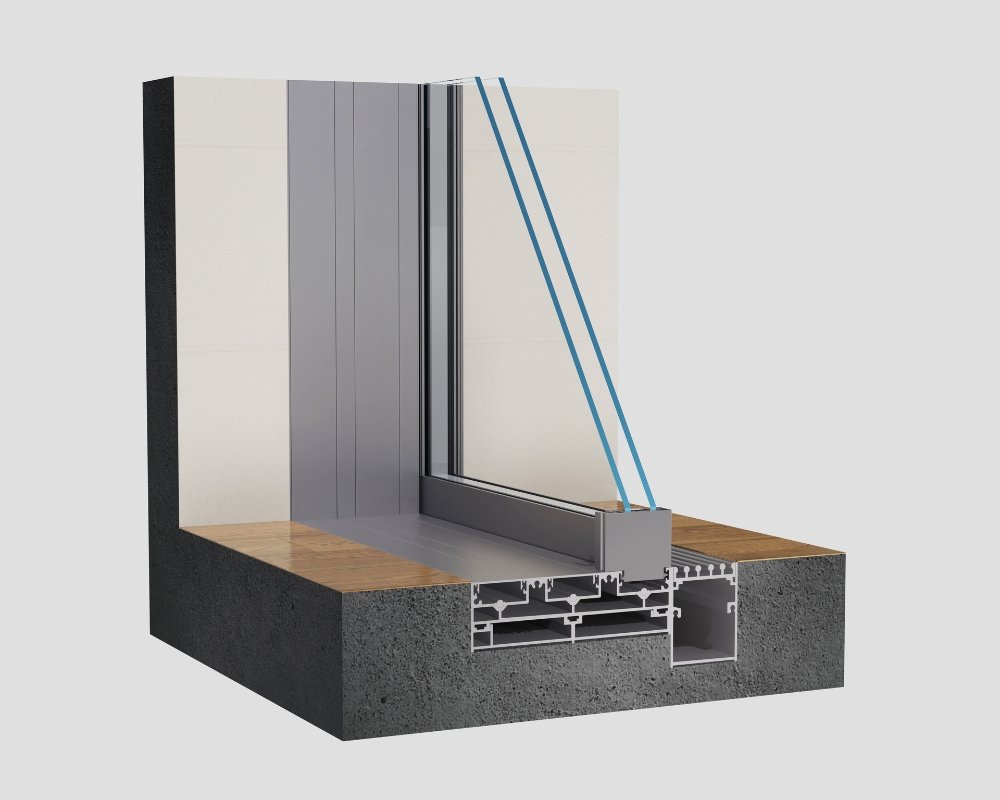

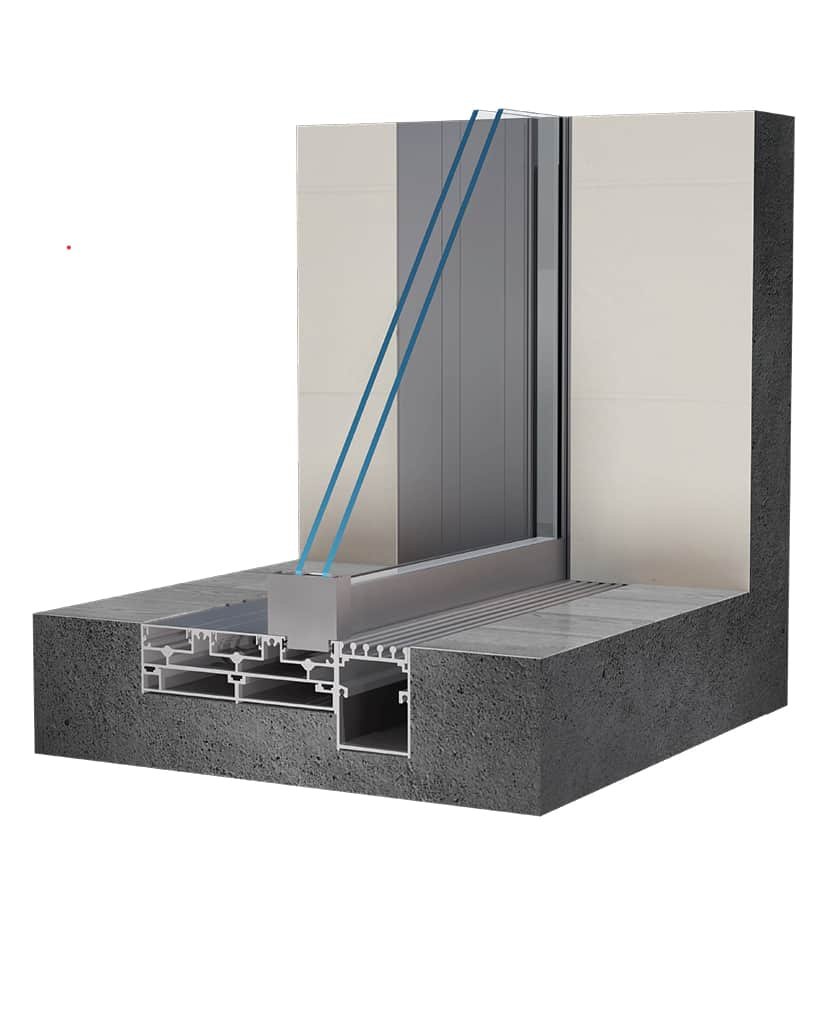

GREFET EPIC19 redefines luxury with a seamless view, offering a sleek 19mm sightline to maximize natural light. Engineered with precision, its advanced system design features an outer frame flushed from all four sides, crafted from virgin alloy 6063-T6. Perfectly blending aesthetics and accessibility, it ensures ease of use for children, the elderly, and wheelchair users. EPIC19 also delivers exceptional sound insulation and supports wide glazing surfaces. The unitized door system includes structurally bonded glass within a sash frame, with an optional dedicated water track system. It’s about creating an uninterrupted, breathtaking view with effortless functionality.

  • Maximum glass view
  • Interlock 19 mm
  • Multi locking mechanism
  • Reinforced interlocking options
  • Unitized pasting sash system with concealed options on all 4 sides
  • Possibility of pocket system
  • Alloy grade
    6063 – T6
  • Glazing
    12 - 24 mm glass
  • Possible Typology – 2, 3, 4, 6 sashes

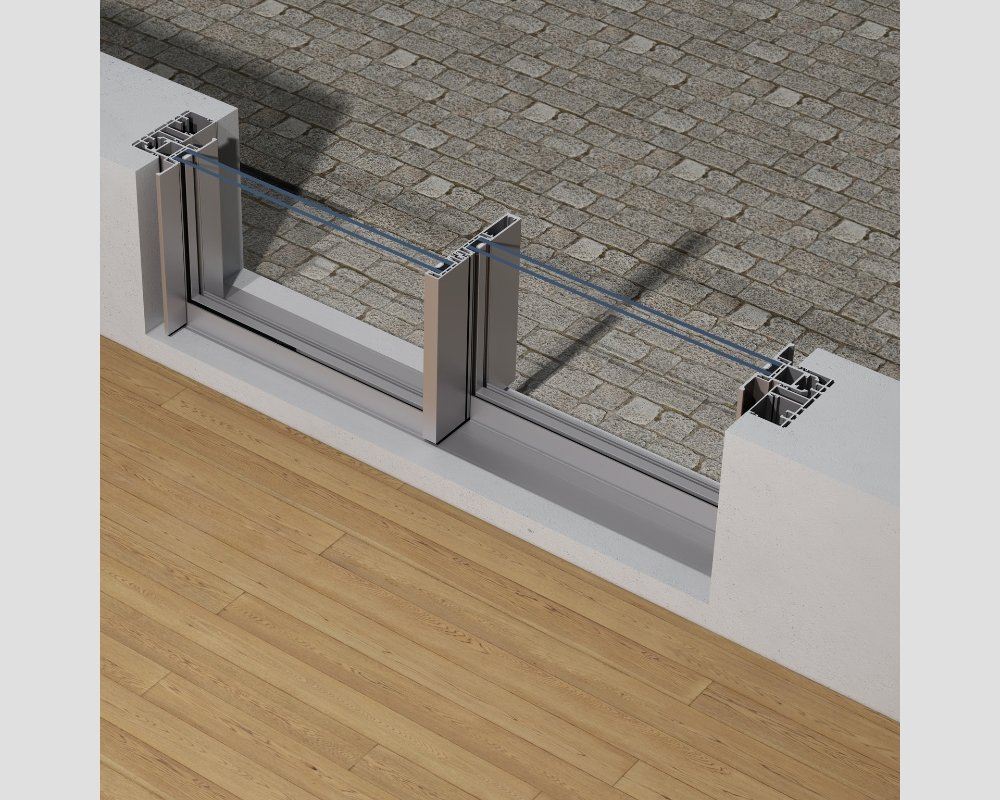

    Possibilities – 2 track & 3 track

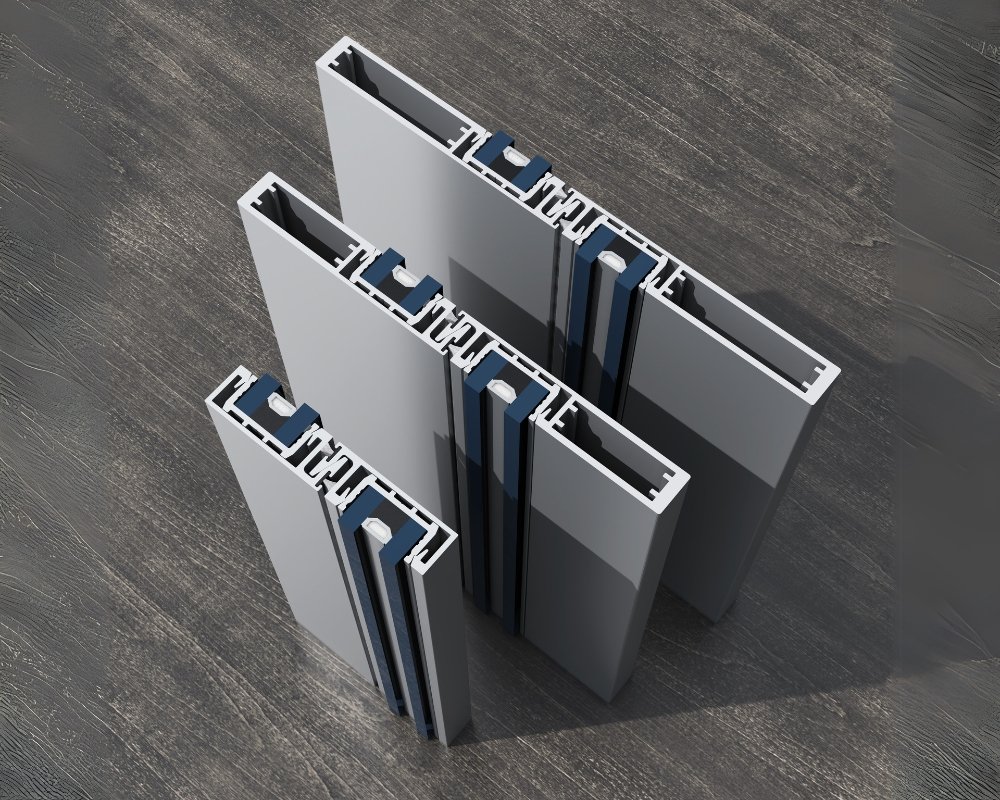

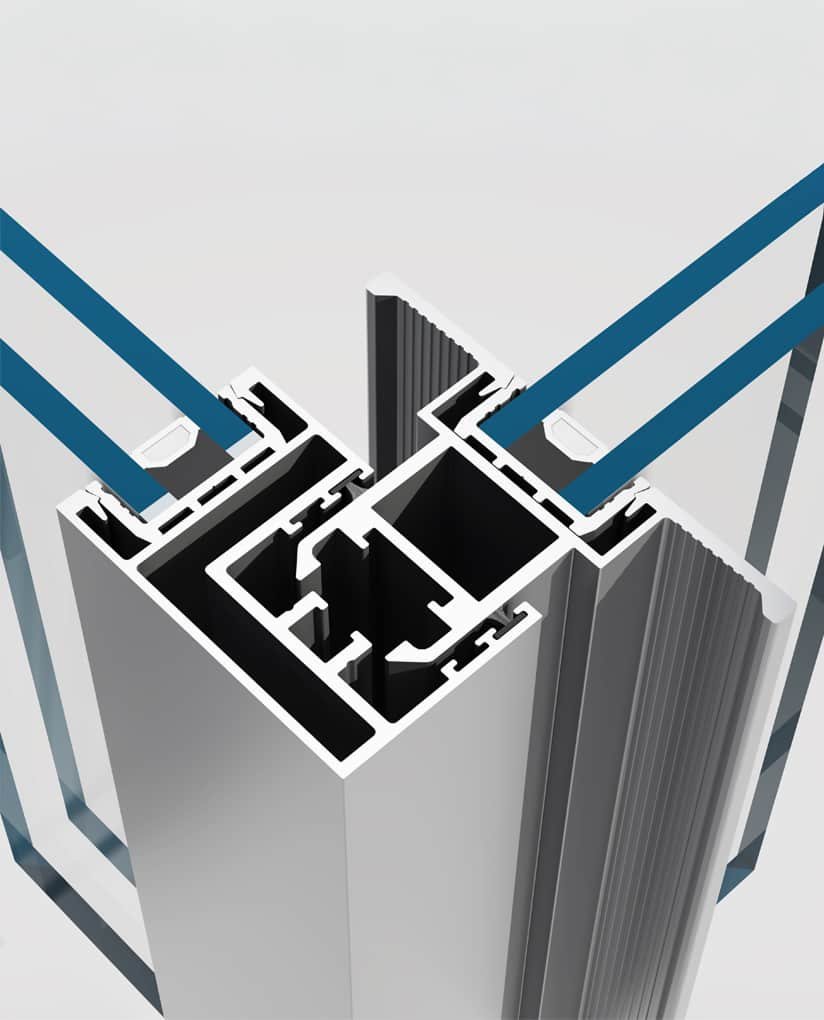

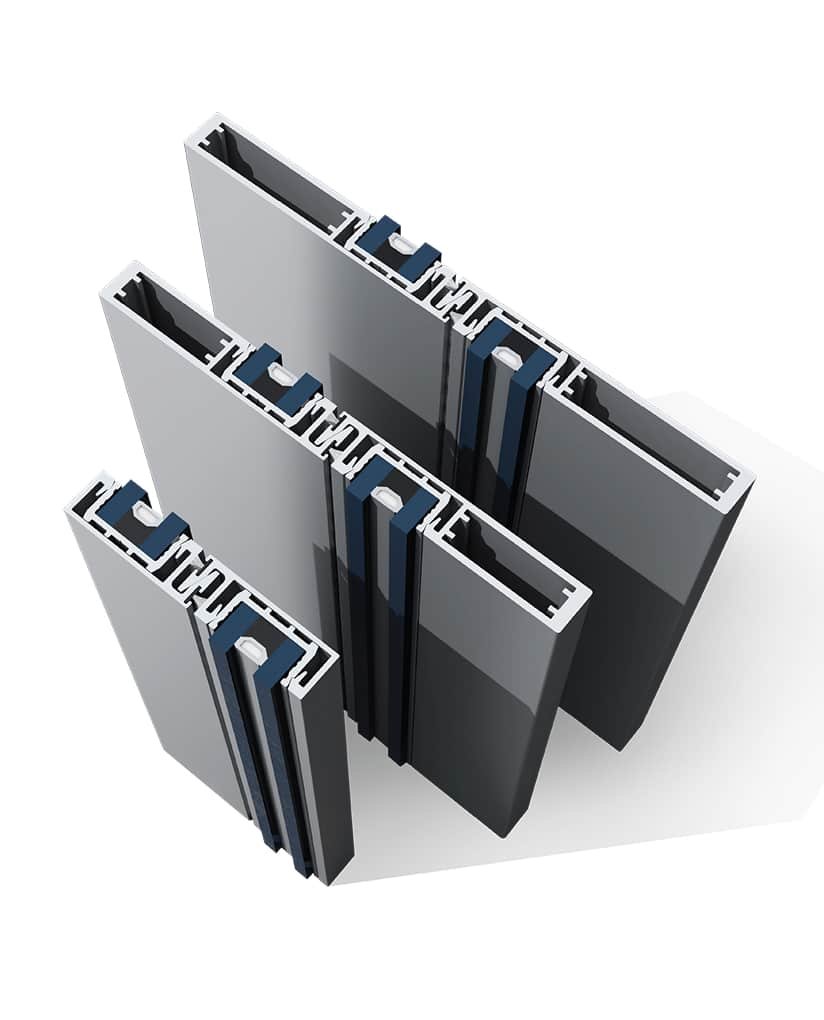

  • Sections
    Frame: 2 track 104 mm
    3 track 163 mm
    Frame depth: 34 | 45 mm
  • Profile thickness – 2.5 to 6 mm
  • Sash 33 mm
  • Maximum weight per leaf 300 Kg

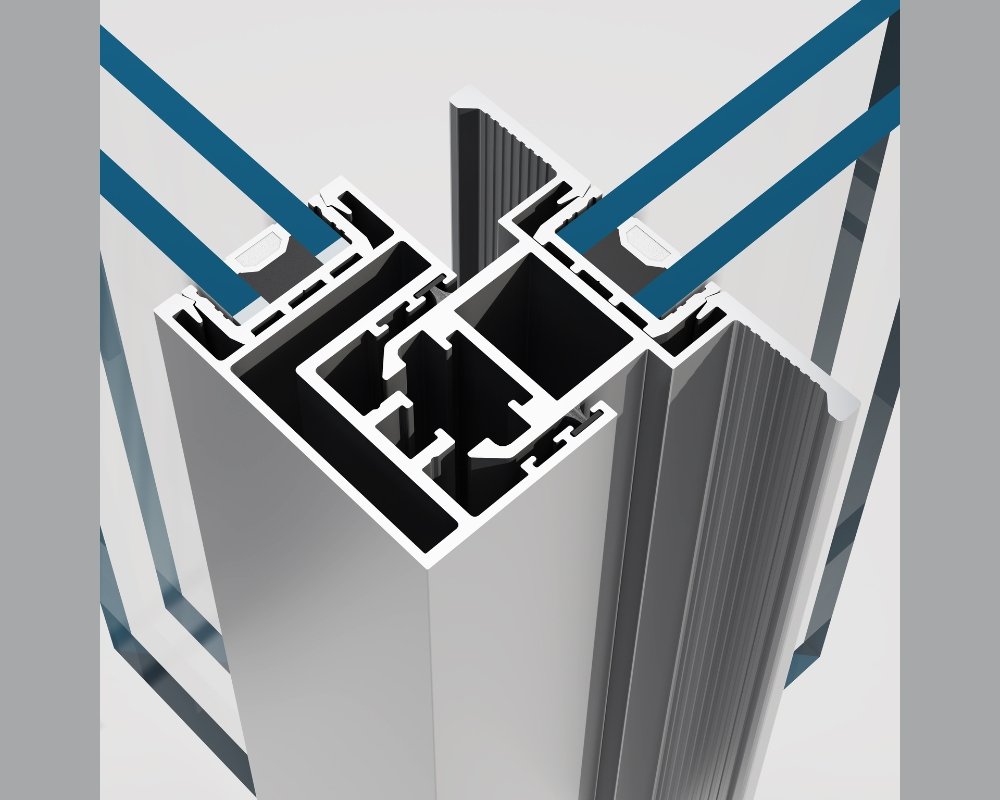

  • Central interlocking 19 mm
  • Permittable dimensions per leaf (W X H)
    1800 mm X 3660 mm
  • Transmittance
    Uw from 2.9 (W/m2k)*
    *Please consult typology, dimensions & glass
  • Maximum acoustic insulation
    Rw = 40 dB
  • Air permeability
    Test BS EN 1026: 2016 (Class 4)
  • Water tightness
    Test BS EN 1027: 2016 (PA 200, Classification 5A)
  • Wind resistance
    As per BS EN 12210 (2.8 kPA)

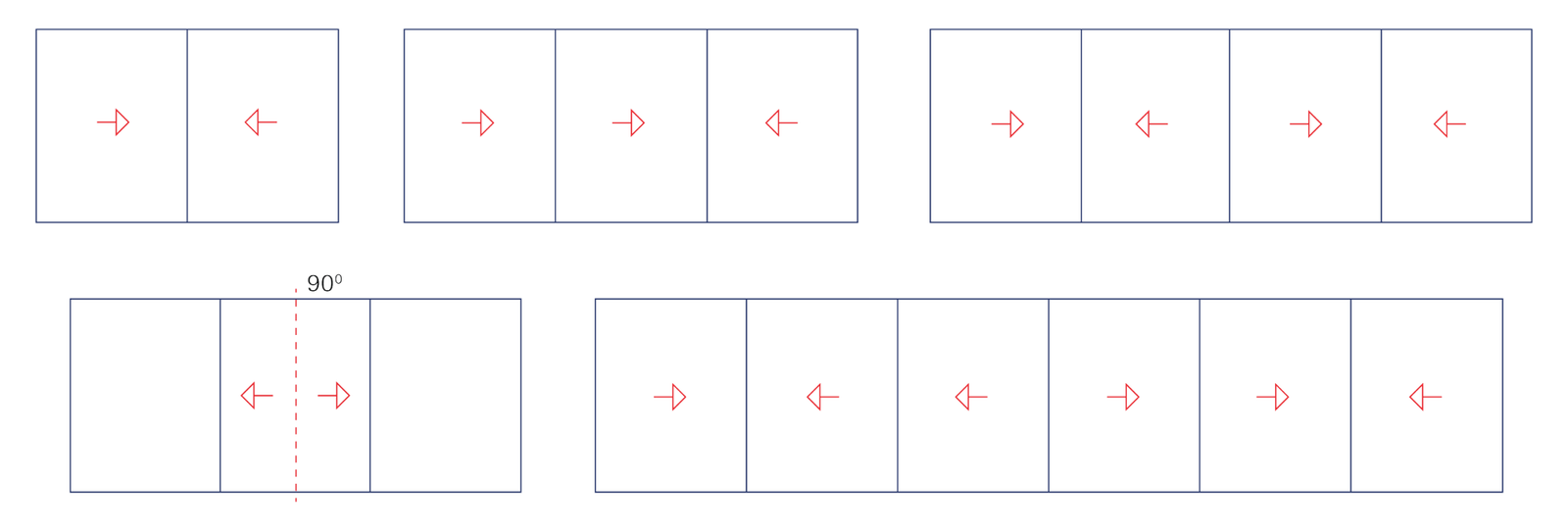

Typology

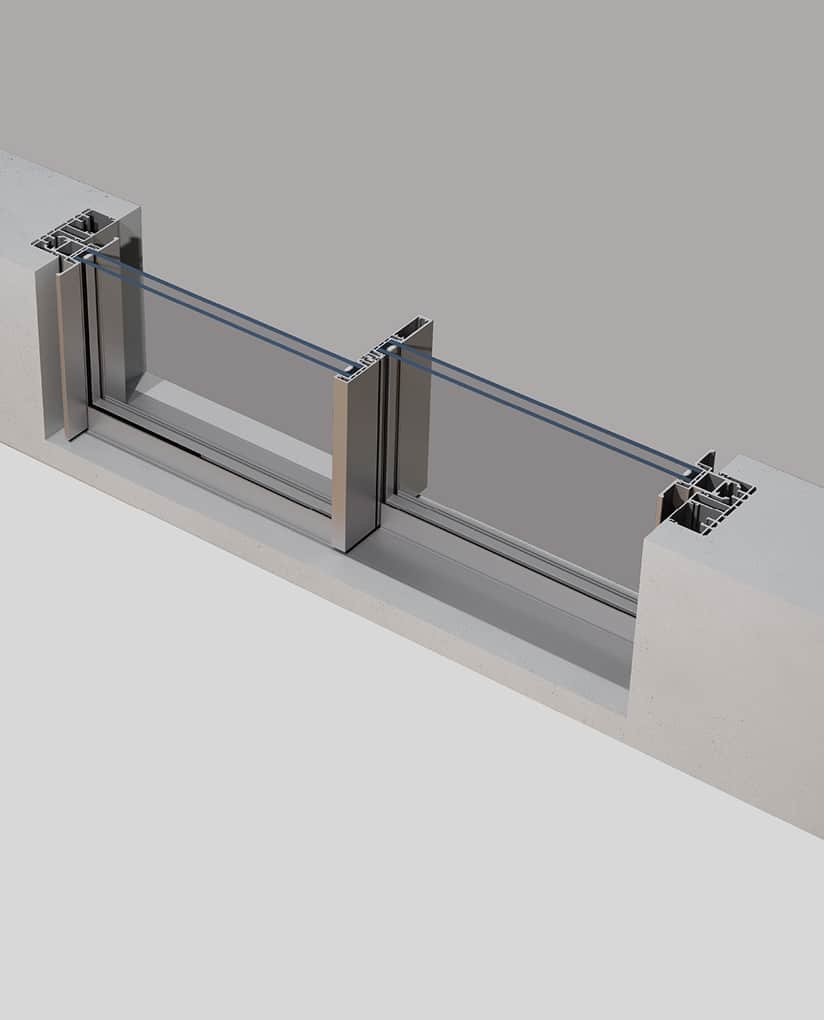

2 Track
3 Track
