LINIA300
Built for Versatility, Designed to Scale

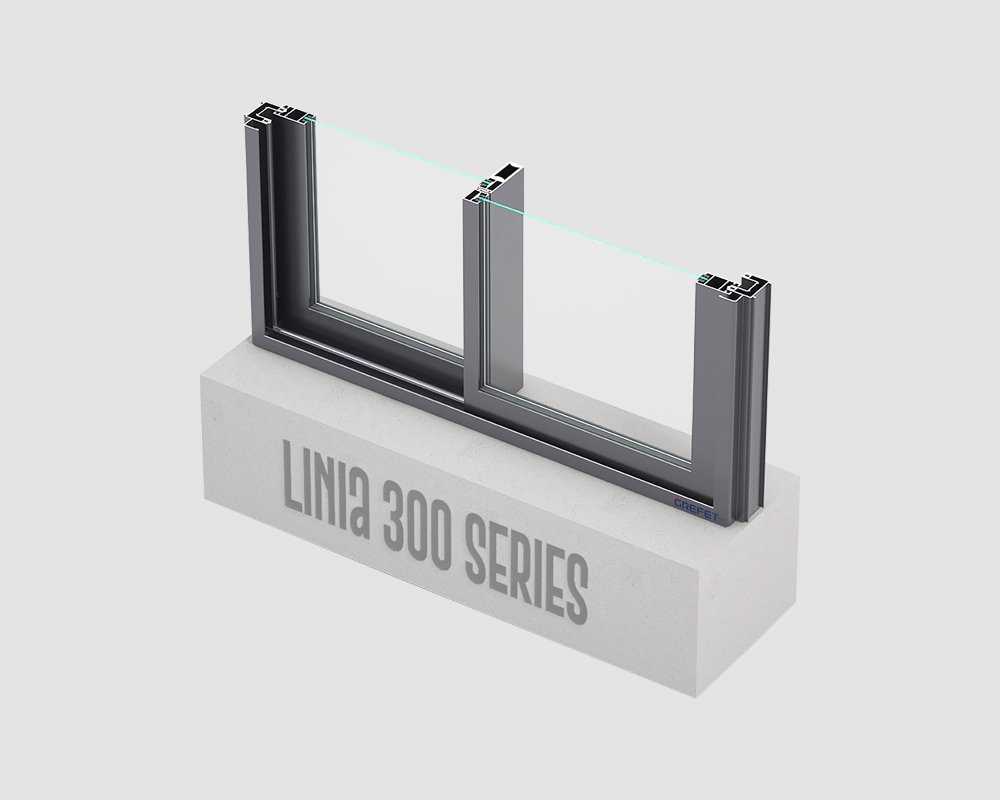

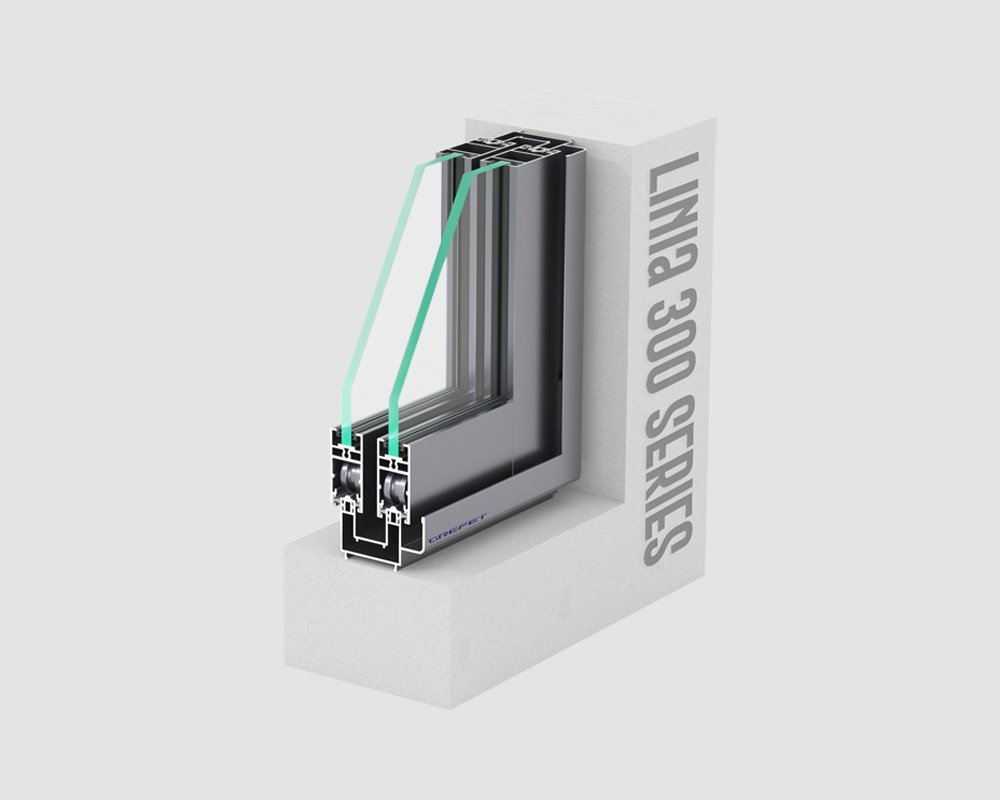

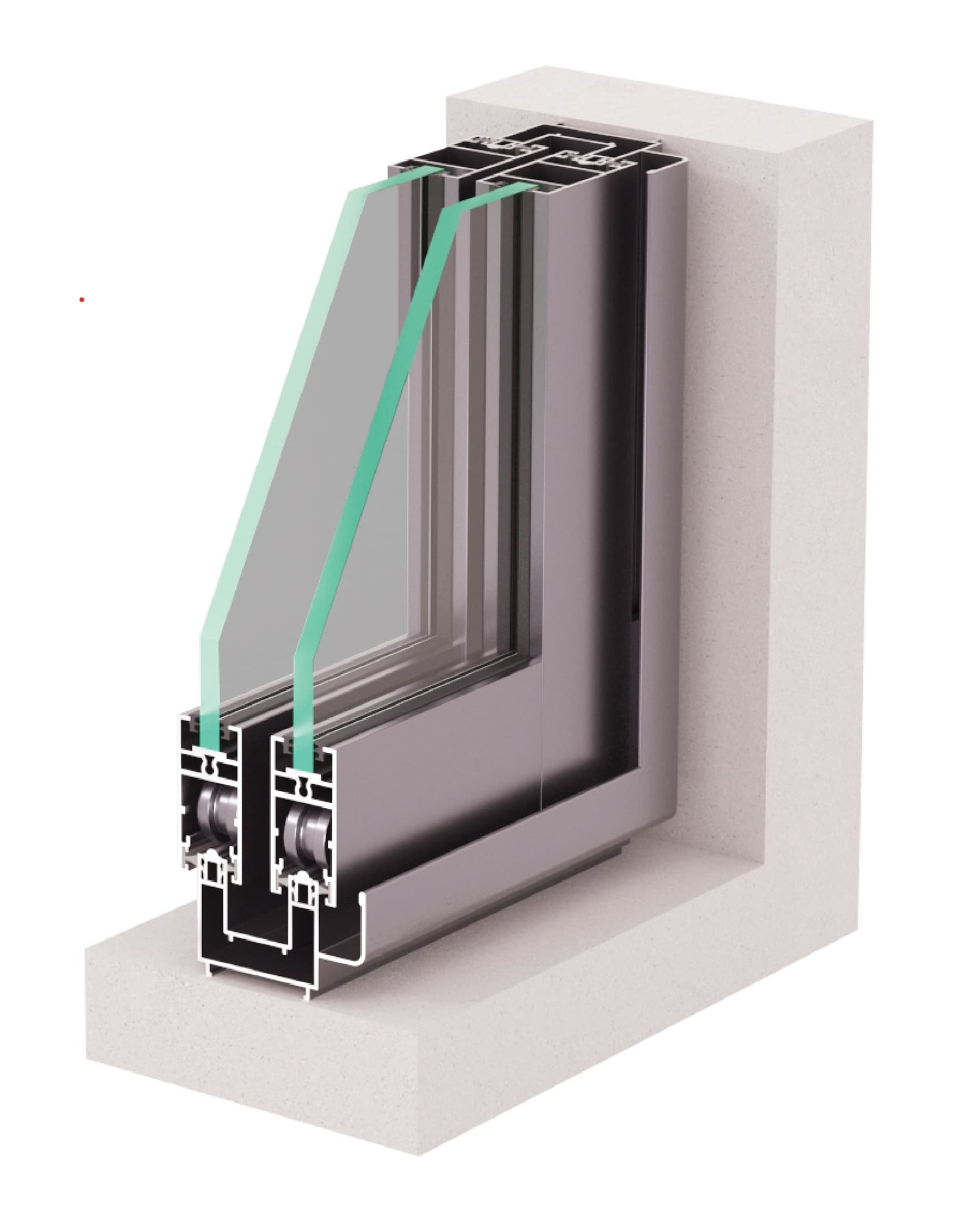

LINIA300 is a high-performance system aluminium sliding window that strikes the ideal balance between flexibility and clean architecture. It is made with 45° frame joints and 90° sash meets, ensuring structural accuracy using long-lasting 6063-T6 alloy. It has single and multi-point locking with reinforced interlocking. LINIA300 accommodates multiple track options and configurations and is ideal for aluminium windows for homes and commercial projects. An intelligent decision for architects and fabricators who demand scalable, high-performance yet cost-effective aluminium sliding window systems with this right mix of aesthetics.
- • Designed for high-rise residential and volume-based projects
- • Multiple configurations available including 2 Track, 2.5 Track, 3 Track, and 3.5 Track options
- • Engineered for smooth fabrication and efficient installation
- • Supports integrated mesh solutions within the same frame system
- • Optimized for large-scale project execution and consistent performance

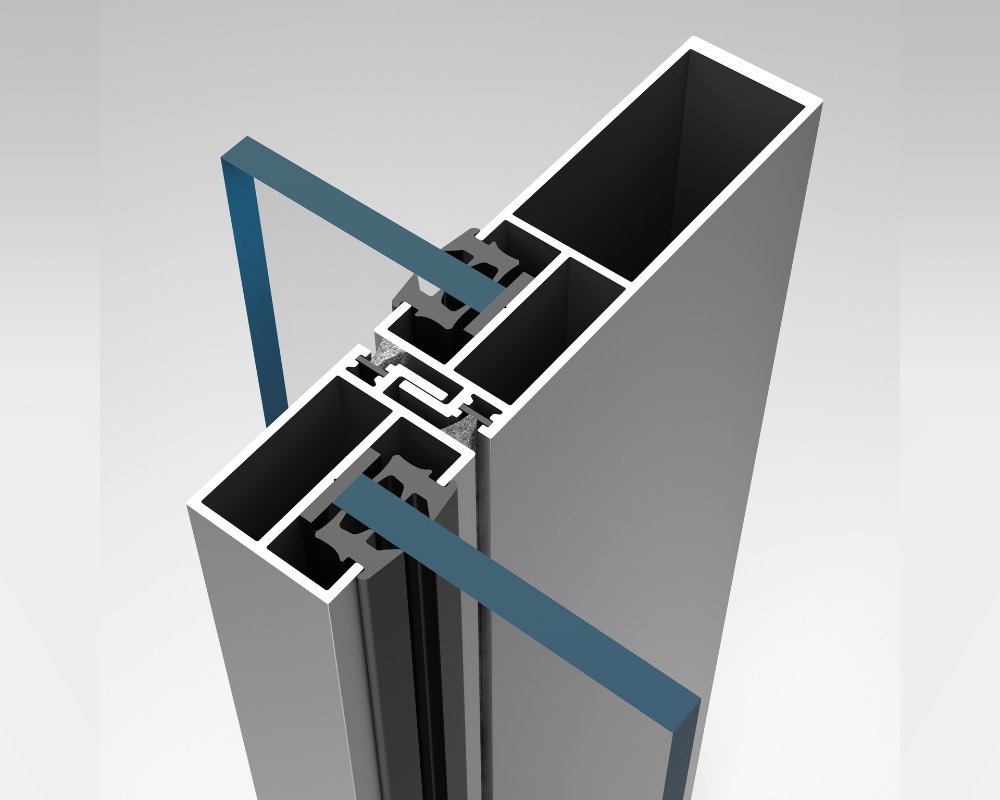

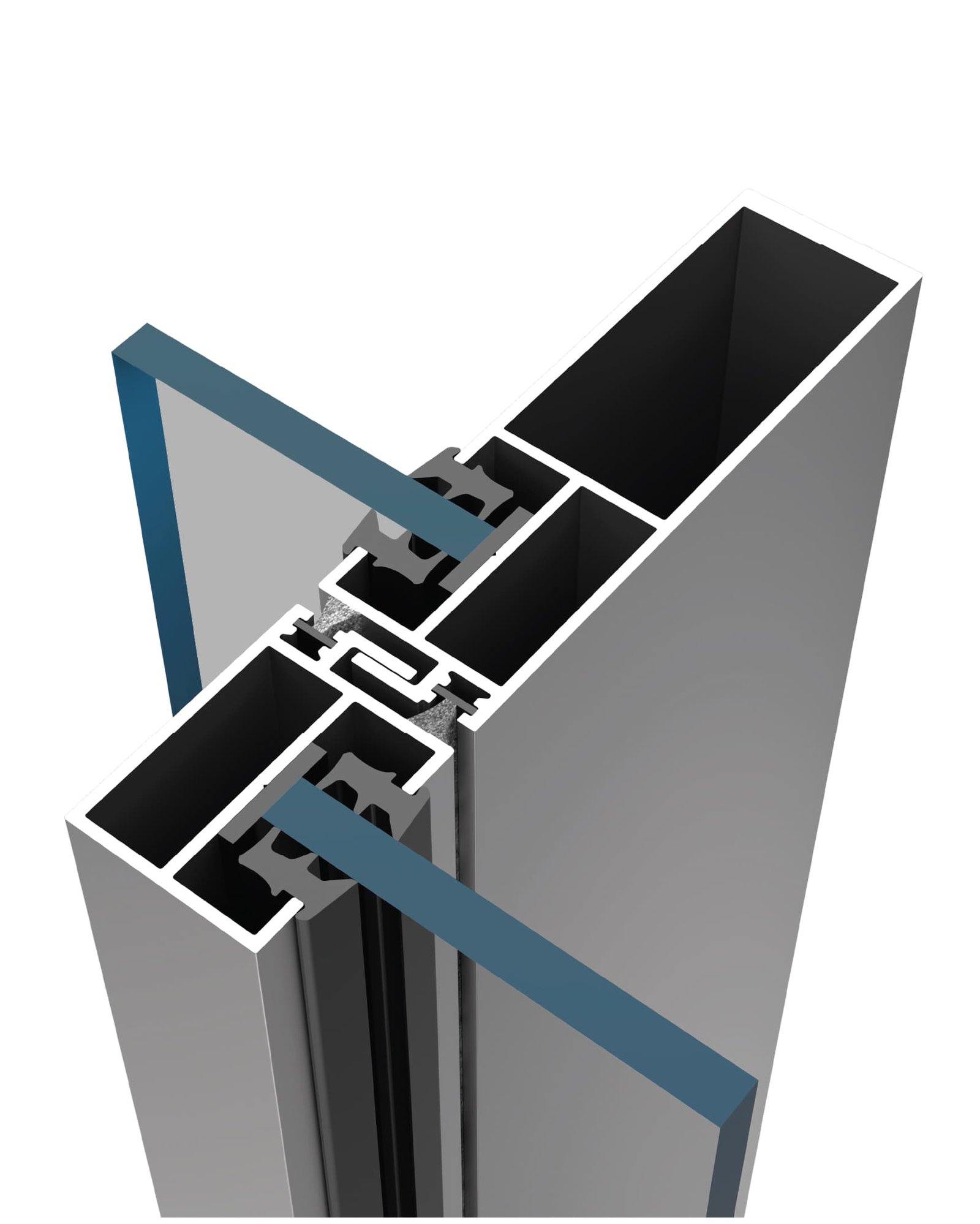

- • Reinforced interlock design for enhanced strength and stability
- • Developed to deliver good wind resistance for high-rise applications
- • Sleek aluminium sightlines with modern minimal aesthetics
GLAZING
Minimum
6 mm
Maximum
21 mm
Possible Typology
2, 3, 4, 6 leaf (+ mesh)

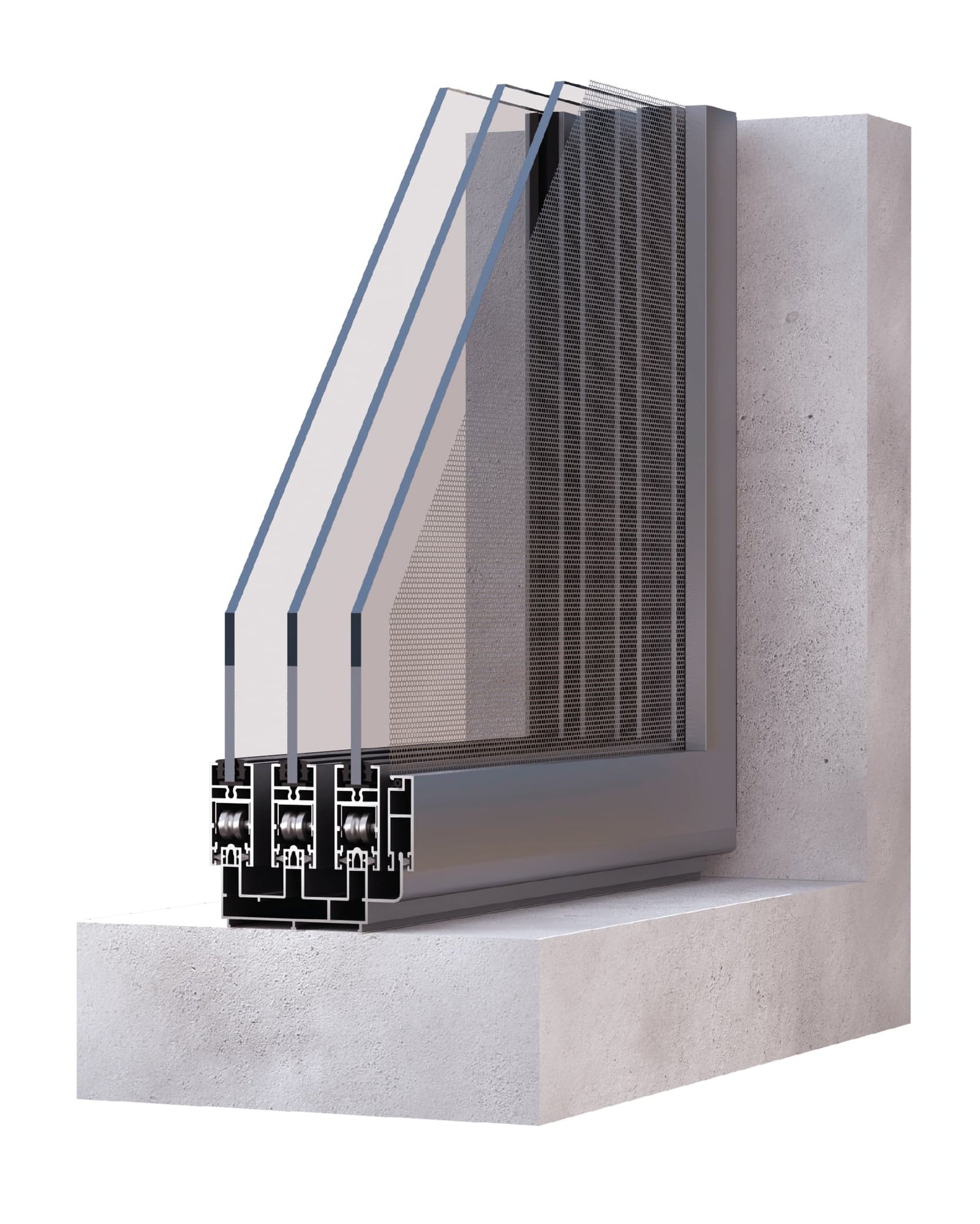

Frame Specifications
2 track | 2.5 track
50 | 70 mm
3 track | 3.5 track
87 | 108 mm
Frame depth
42 mm
SASH
21 – 54 mm
Profile thickness
1.4 to 3 mm
Maximum weight per leaf
120 Kg
Central interlocking
25 mm
Multi-locking system with key option
Yes
Permittable dimensions per leaf (W X H)
1200 X 2440
Transmittance
Uw from 3.0 (W/m2k)*
*Please consult typology, dimensions & glass
Maximum acoustic insulation
Rw = 30 dB
Wind resistance
As per BS 1026 (Class4)
Air permeability
Test BS EN 1026:2016 (PA 600, Class 4)
Water tightness
Test BS EN 1027:2016 (PA 300, Classification 4A)
Typology
Opening Possibilities
- 2 Track
- 2.5 Track
- 3 Track
- 3.5 Track
*Consult maximum weight and dimensions according to typologies
Key Advantages
- Engineered Geometry for Structural Precision
- Ideal for Large-Scale & Multi-Unit Projects
- Multiple Track & Configuration Flexibility
- Reinforced Interlock for Enhanced Stability
- Smooth & Reliable Sliding Operation
- Flexible Locking for Safety & Control
- Efficient, Value-Driven System Solution
- Engineered Geometry for Structural Precision
- Ideal for Large-Scale & Multi-Unit Projects
- Multiple Track & Configuration Flexibility
- Reinforced Interlock for Enhanced Stability
- Smooth & Reliable Sliding Operation
- Flexible Locking for Safety & Control
- Efficient, Value-Driven System Solution
