Meridian32

So good that it will
make your set of 32 smile.

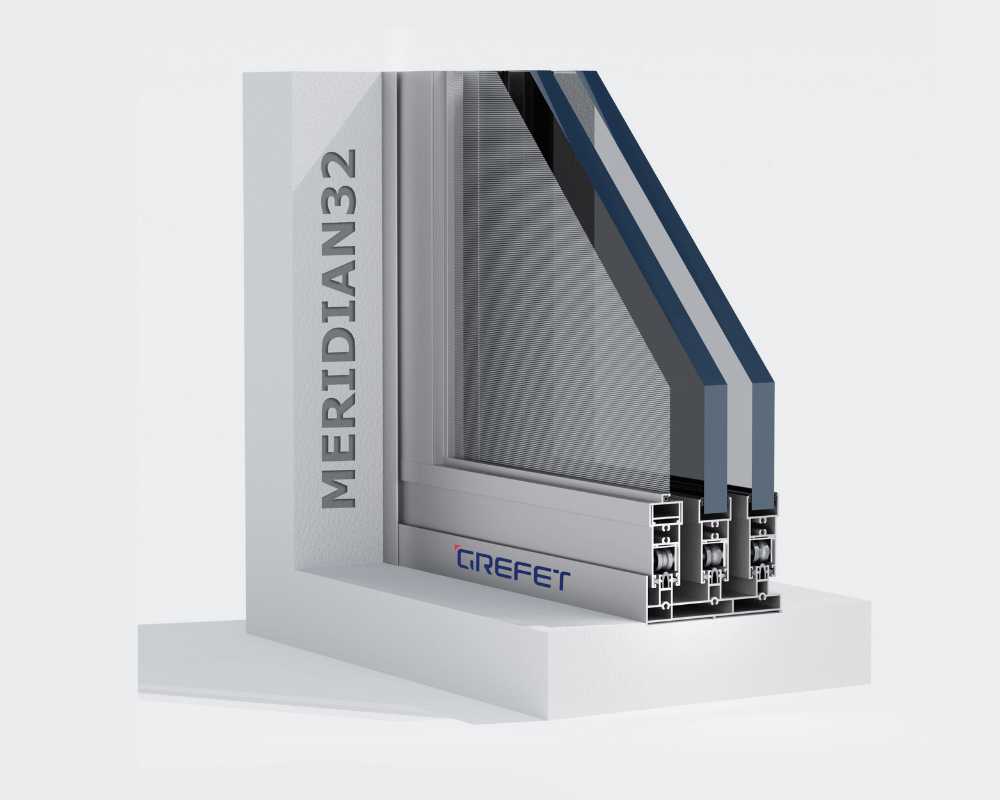

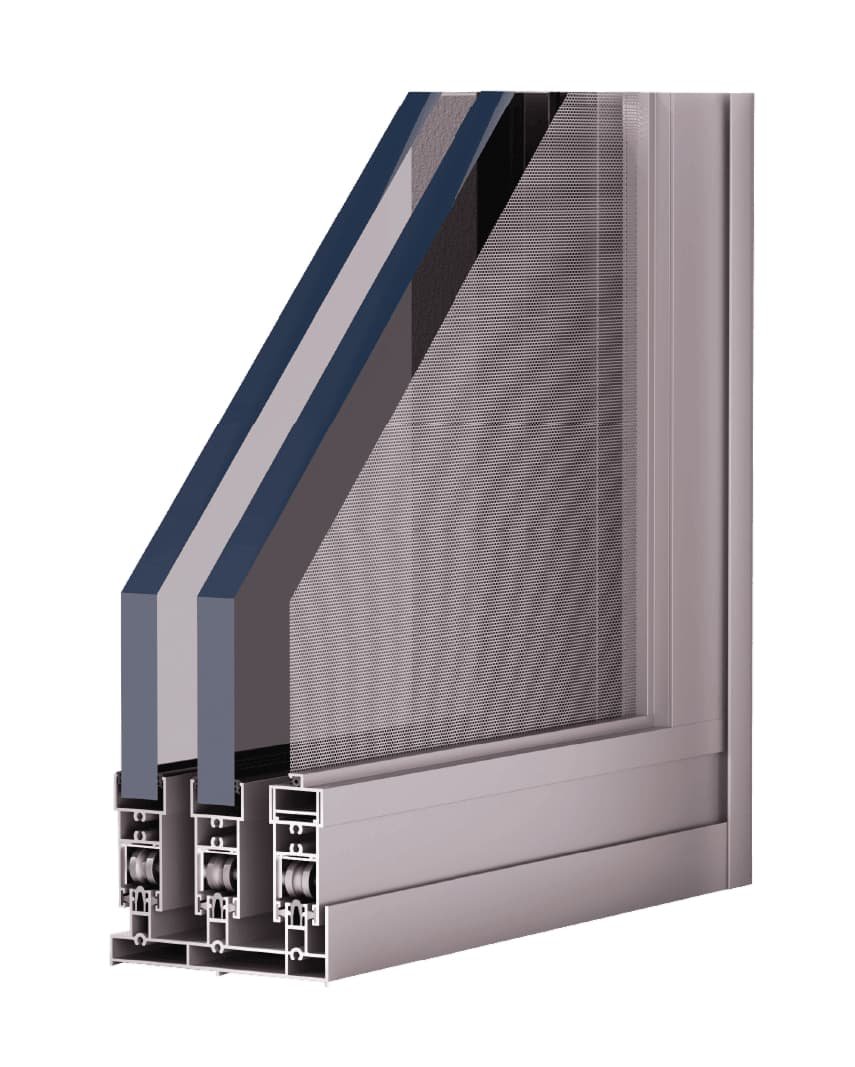

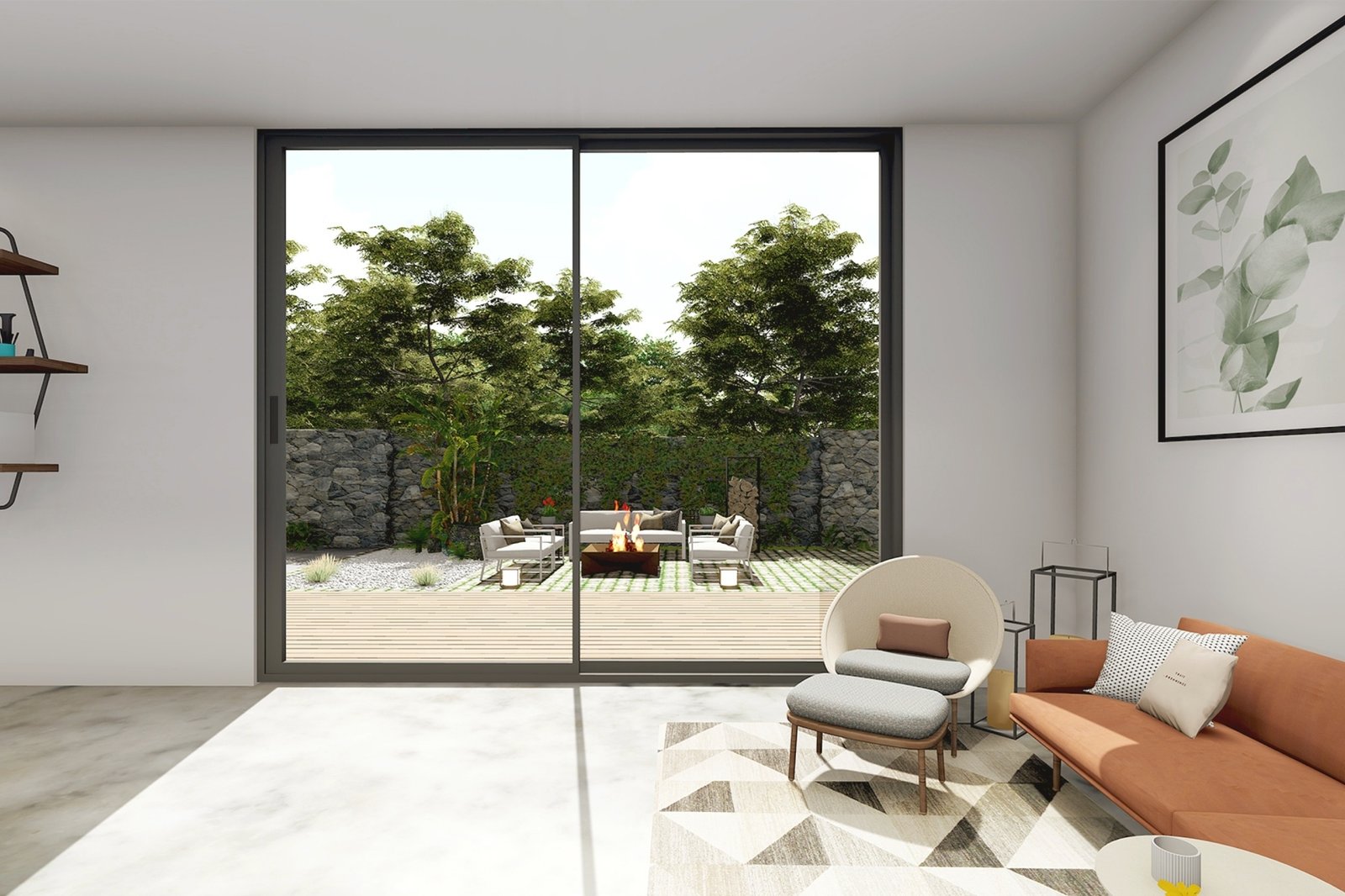

MERIDIAN32 is a non-insulated sliding door window designed to deliver simplicity and elegance. Featuring a minimal sightline of 20mm, it is crafted from durable virgin alloy 6063-T6 for lasting performance. The system offers both single and multi-locking options, ensuring security and ease of use. Customizable with a mesh sliding track, it also provides flexibility in color, glass types, and a variety of typologies to match diverse architectural needs. MERIDIAN32 combines functionality with design, making it a reliable choice for spaces that prioritize a clean aesthetic without compromising on performance or customization.

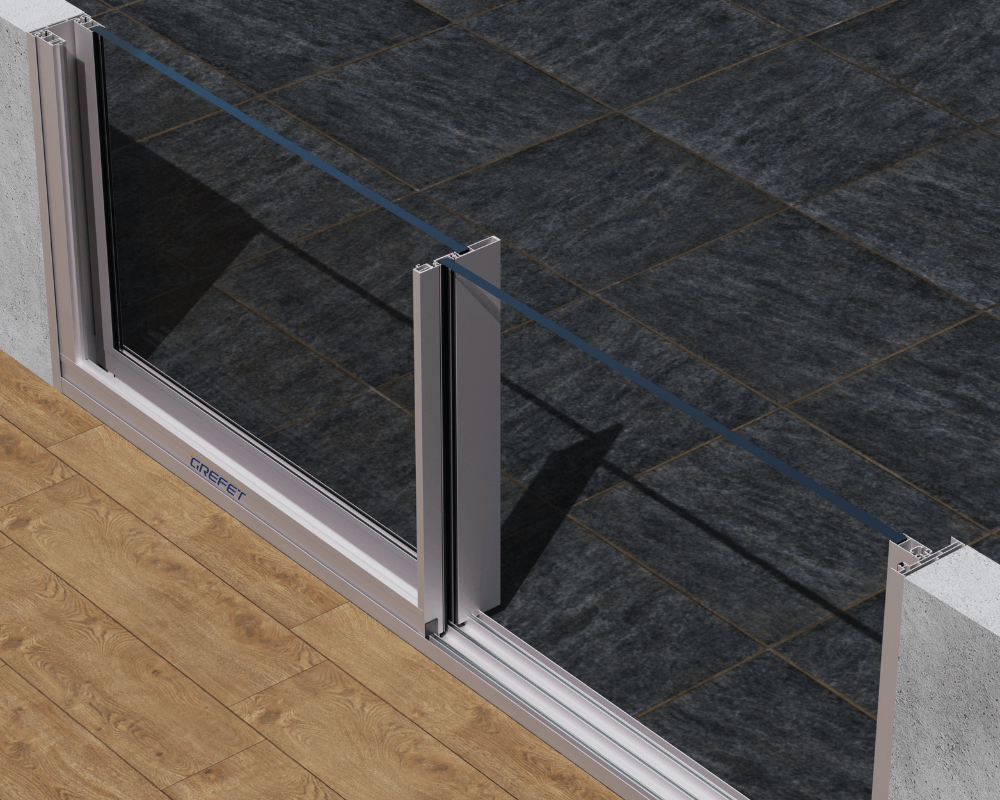

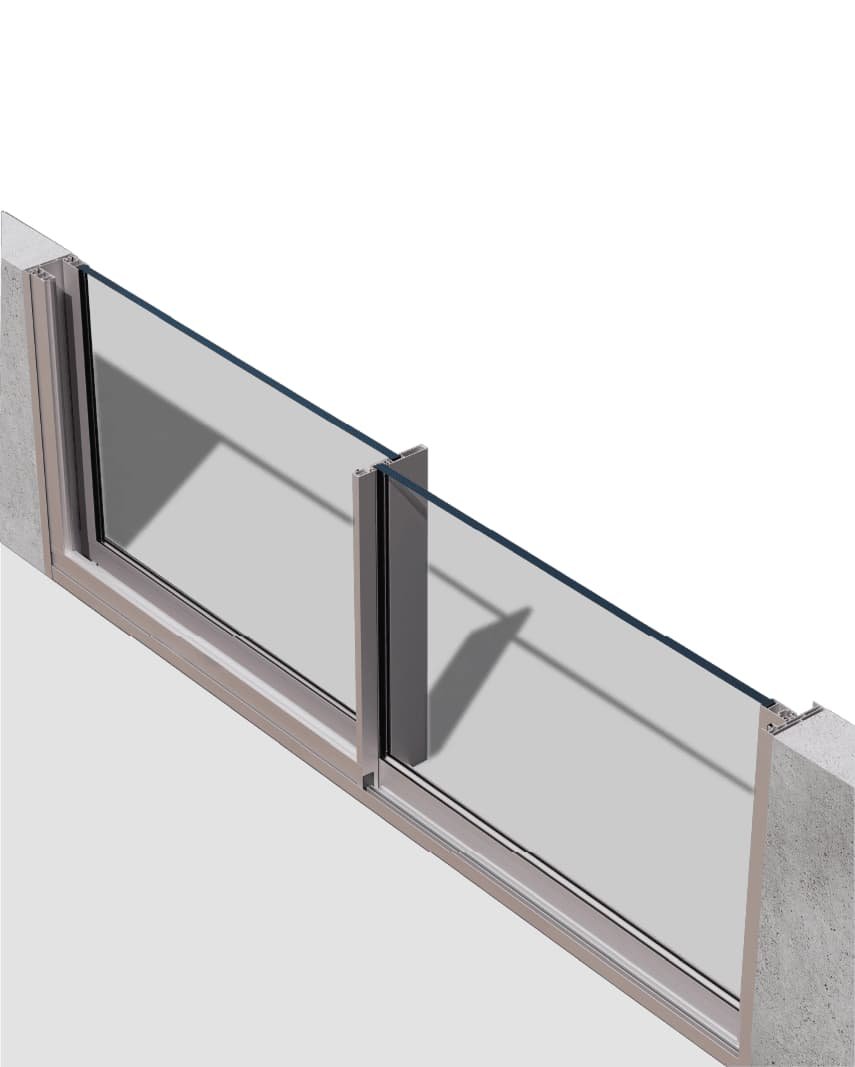

  • Sliding system with all frame and sashes at 90 degree encounter
  • Sleek system
  • Multi locking mechanism
  • Sleek reinforced interlocking system
  • Alloy grade
    6063 – T6
  • Glazing
    6-24 mm glass
  • Possible Typology – 2, 3, 4, 6 sashes
    Possibilities – 2 track & 3 track
  • Sections
    Frame: 2 track 85 mm
    3 track 132 mm
    Frame depth: 30 |40 mm
  • Profile thickness – 1.5 to 5 mm
  • Sash 32 mm
  • Maximum weight per leaf 160 Kg

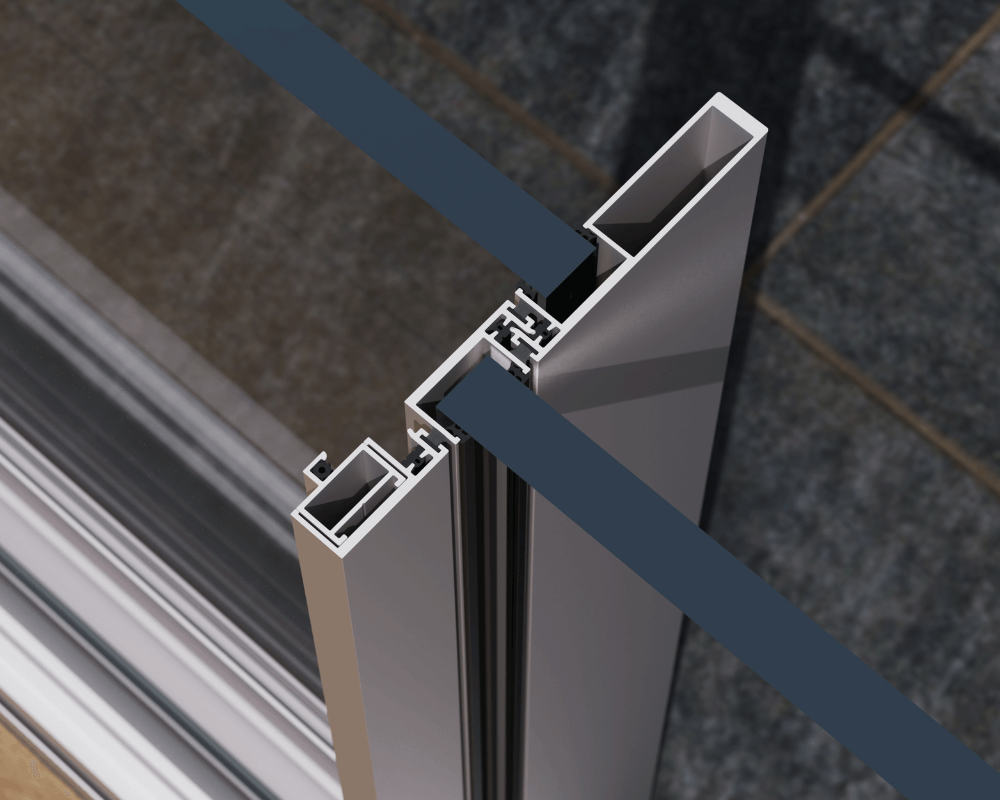

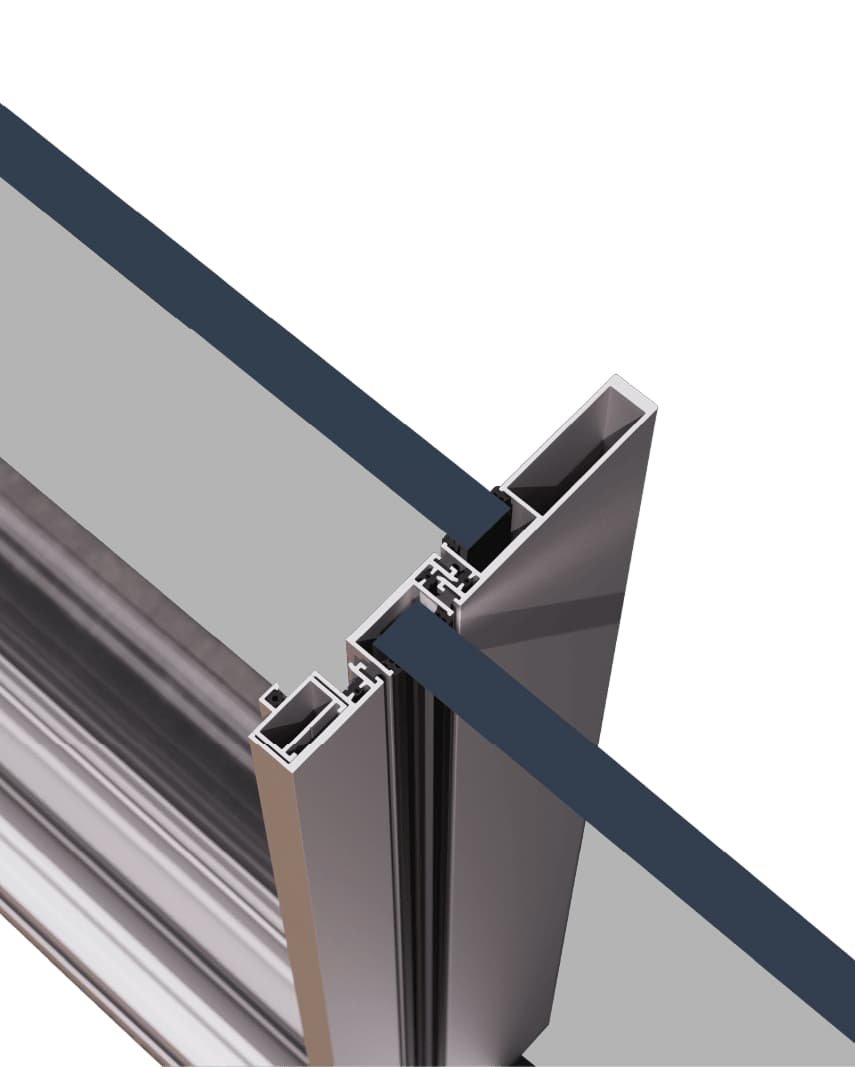

  • Central interlocking 20 mm
  • Permittable dimensions per leaf (W X H)
    1220 mm X 2440 mm
  • Transmittance
    Uw from 3.0 (W/m2k)*
    *Please cross check typology, dimensions & glass
  • Maximum acoustic insulation Rw = 30 dB
  • Air permeability Test BS EN 1026: 2016 (Class 3)
  • Water tightness
    Test BS EN 1027: 2016 (PA 150, Classification 4A)
  • Wind resistance As per BS EN 12210 (2.5 KPA)

Typology

2 Track
3 Track
