Corset37

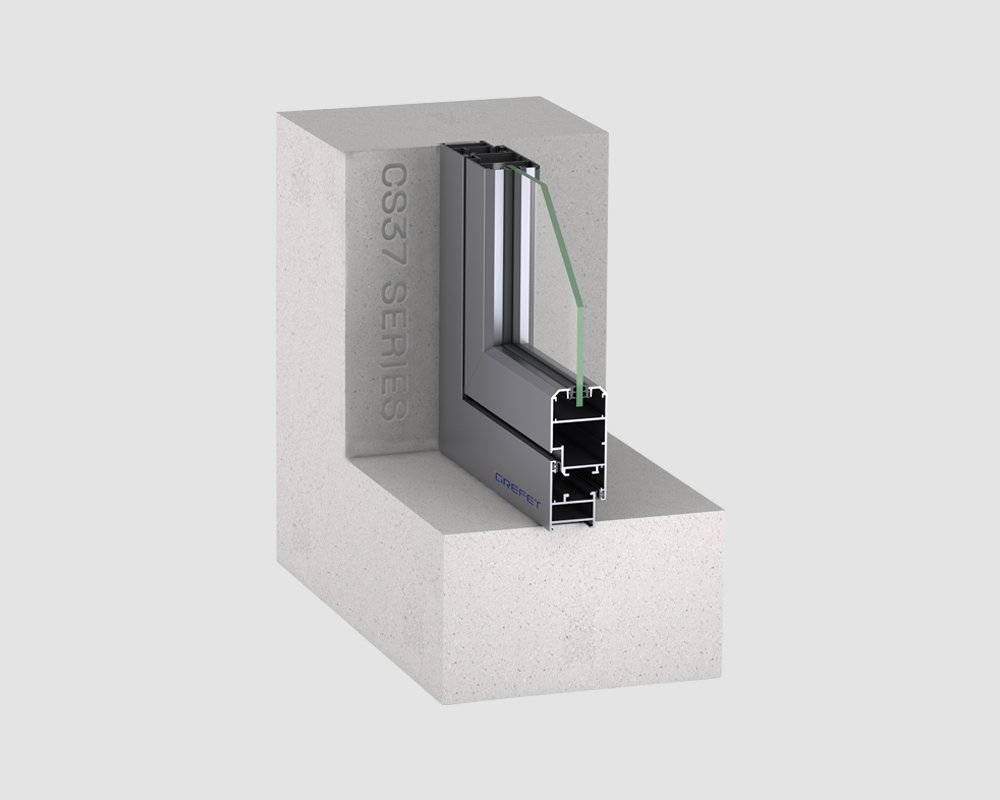

CORSET37 is a series of versatile casement windows designed for optimal functionality and elegant aesthetics. Featuring a robust hinged system with a sleek 30mm frame depth, these units are crafted from premium 6063-T6 aluminum alloy for exceptional durability and performance. The system accommodates both inward and outward openings with side-hung and top-hung configurations, offering design flexibility for various architectural needs.

Compatible with 4-8mm (only openable) glazing and featuring a 1.4mm profile thickness, CORSET37 combines practicality and space-efficient design to enhance utility areas and compact spaces, in any architectural project.

  • Hinged system
  • Frame depth 30 mm
  • Single locking mechanism
  • Alloy grade 6063 – T6
  • Glazing
    8 mm glass
  • Possible Typology

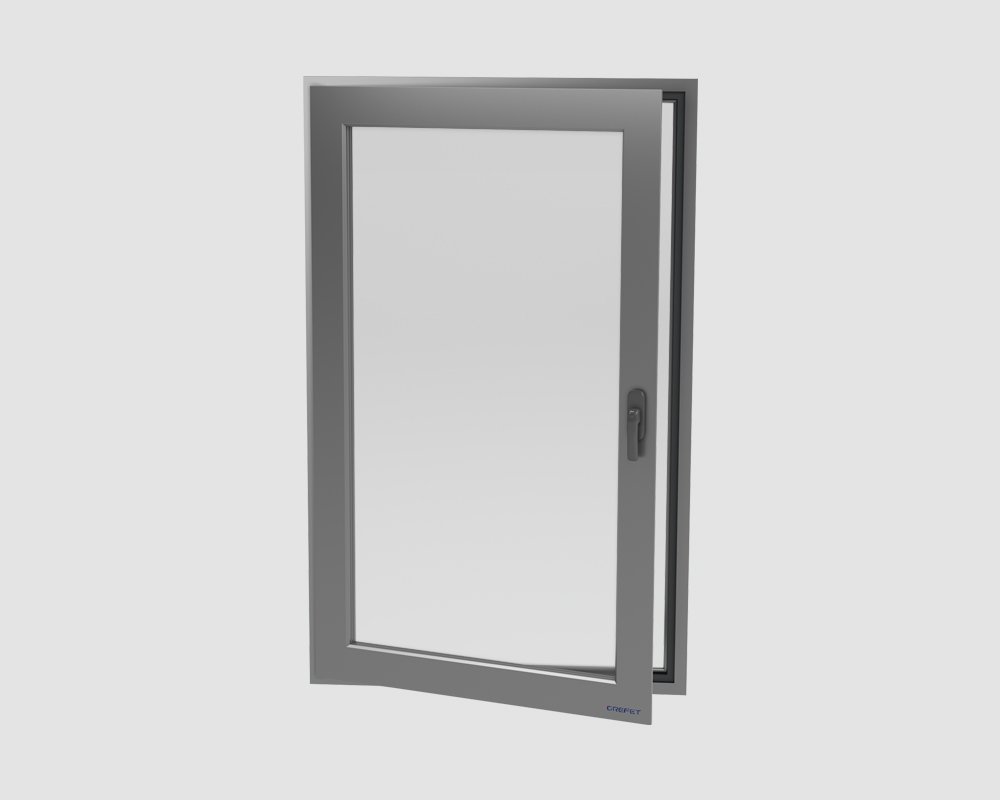

    Side hung

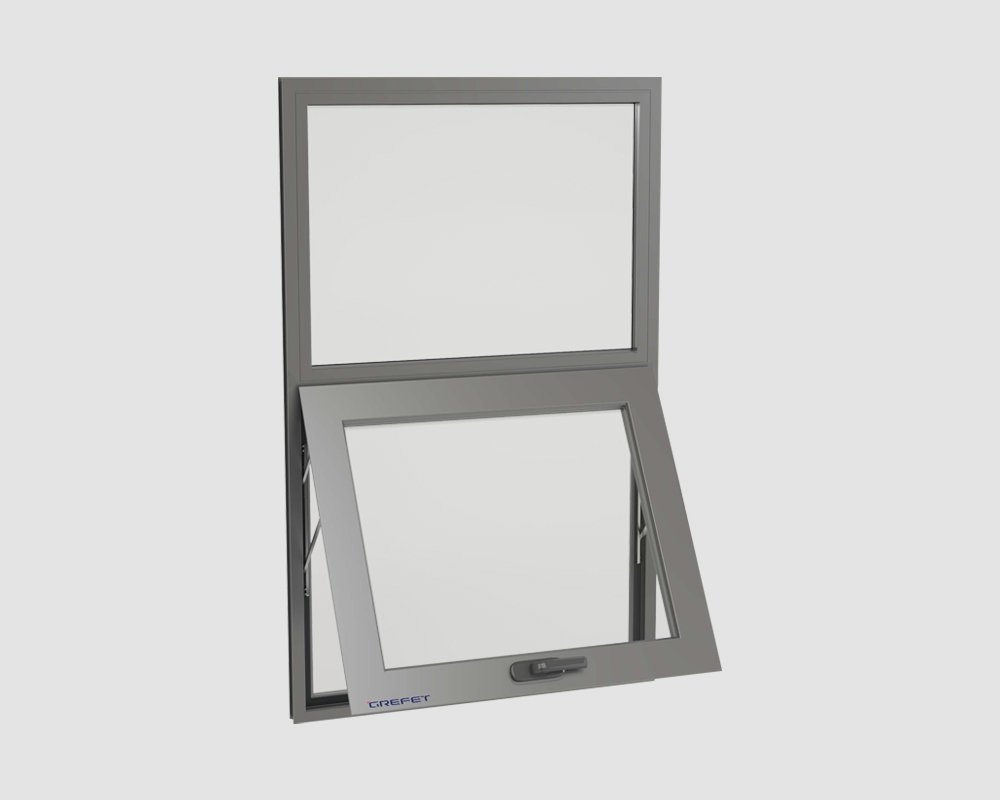

    Top hung
    Inward | outward openings

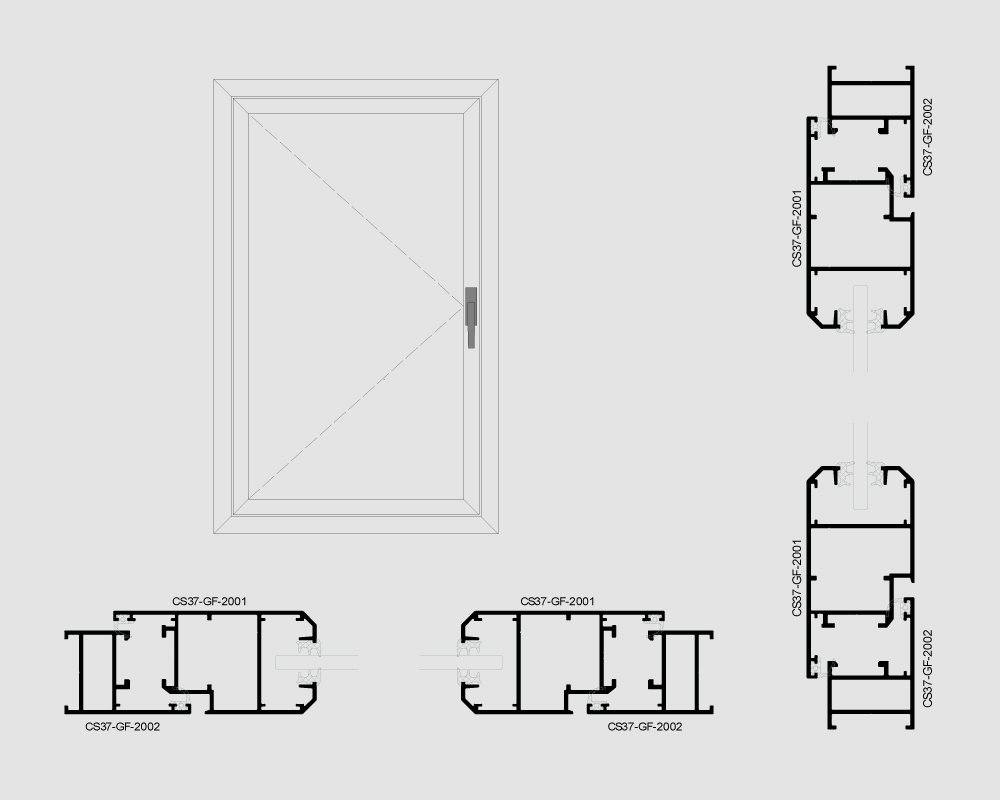

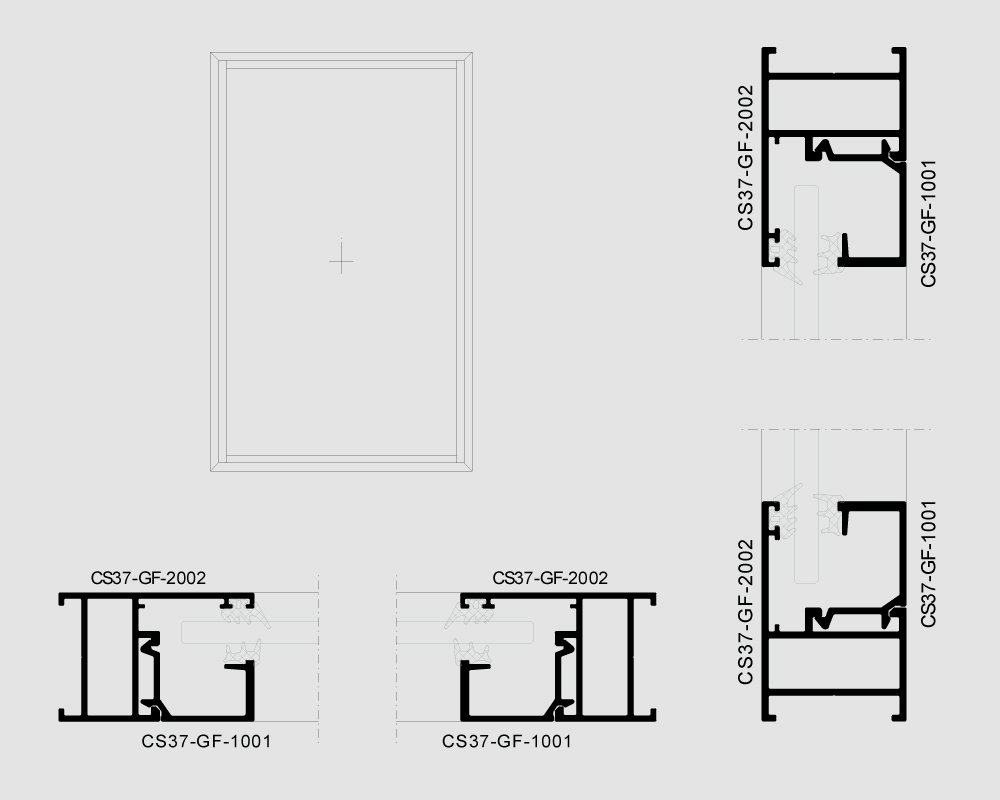

  • Sections
    Frame Depth: 30 | 45 mm
  • Profile thickness – 1.4 mm
  • Sash: 37 - 73 mm
  • Transmittance
    Uw from 2.0 (W/m2k)*
    *Please consult typology, dimensions & glass
  • Maximum acoustic insulation
    Rw upto 40 dB
  • Air permeability
    Test BS EN 1026: 2016 (Class 4)
  • Water tightness
    Test BS EN 1027: 2016 (PA 600, Classification 9A)
  • Wind resistance
    As per BS EN 12210 (2.8 kPA)

Typology
