Meridian36

Price-effective,
yet makes the view priceless.

MERIDIAN36 is a series of non-insulated sliding windows featuring next-generation design for effortless use and exceptional views. Energy-efficient and resistant to wind pressure, these windows are crafted from virgin alloy 6063-T6, ensuring durability and strength. Equipped with a high-security multi-locking system, they offer peace of mind and can be customized with a mesh sliding track. The system also allows for customization in color, glass options, and a wide variety of typologies to suit any design. MERIDIAN36 combines practicality, security, and style to enhance any space, making it the ideal choice for modern living.

  • Partial concealed sliding system
  • Non insulated | Solid rail
  • Reinforced interlocking system
  • Glazing upto 6-27 mm glass
  • Possible Typology – 2, 3, 4, 6 leaf
  • Frame – 80mm / 125 mm
  • Sash 36 mm
  • Maximum weight per leaf 200Kg
  • Central interlocking 22 mm
  • Multi locking system | Key options
  • Maximum dimensions per leaf (W X H) 1525 mm X 3050 mm
  • Transmittance
    Uw from 3.2 (W/m2k)*
    *Please cross check typology, dimensions & glass
  • Maximum acoustic insulation Rw = 37 dB
  • Air permeability Test BS EN 1026: 2016 (Class 4)
  • Water tightness Test BS EN 1027: 2016 (PA 150, Classification 4A)
  • Wind resistance As per BS EN 12210 (Class 4)

Typology

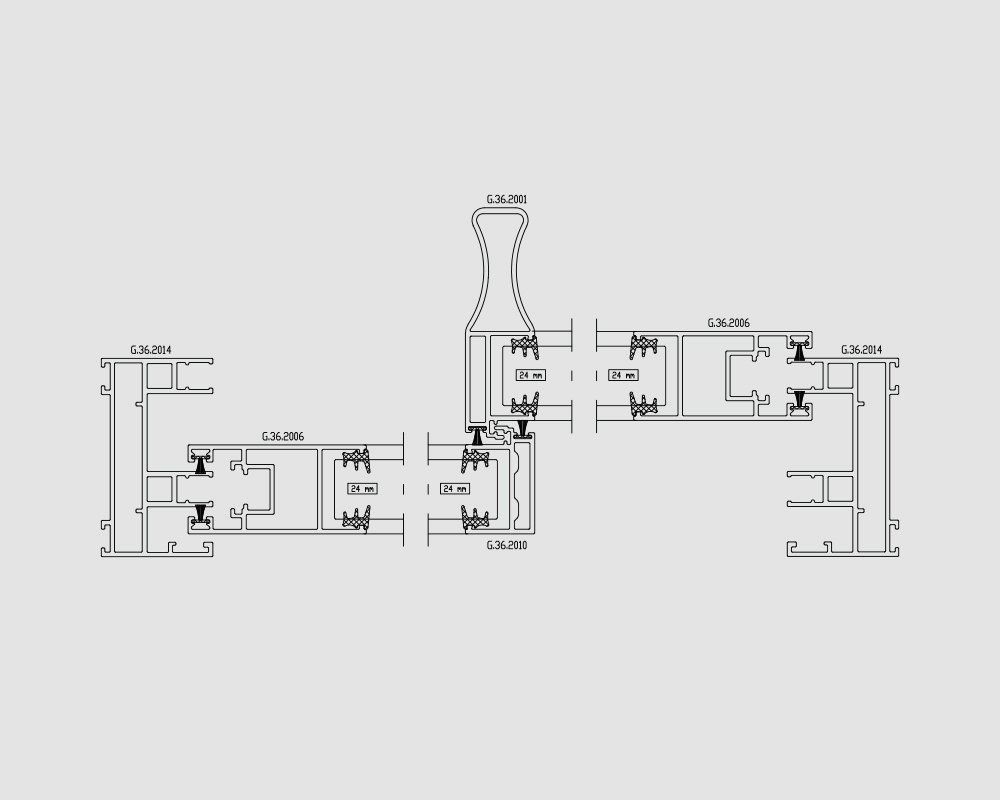

2 Track

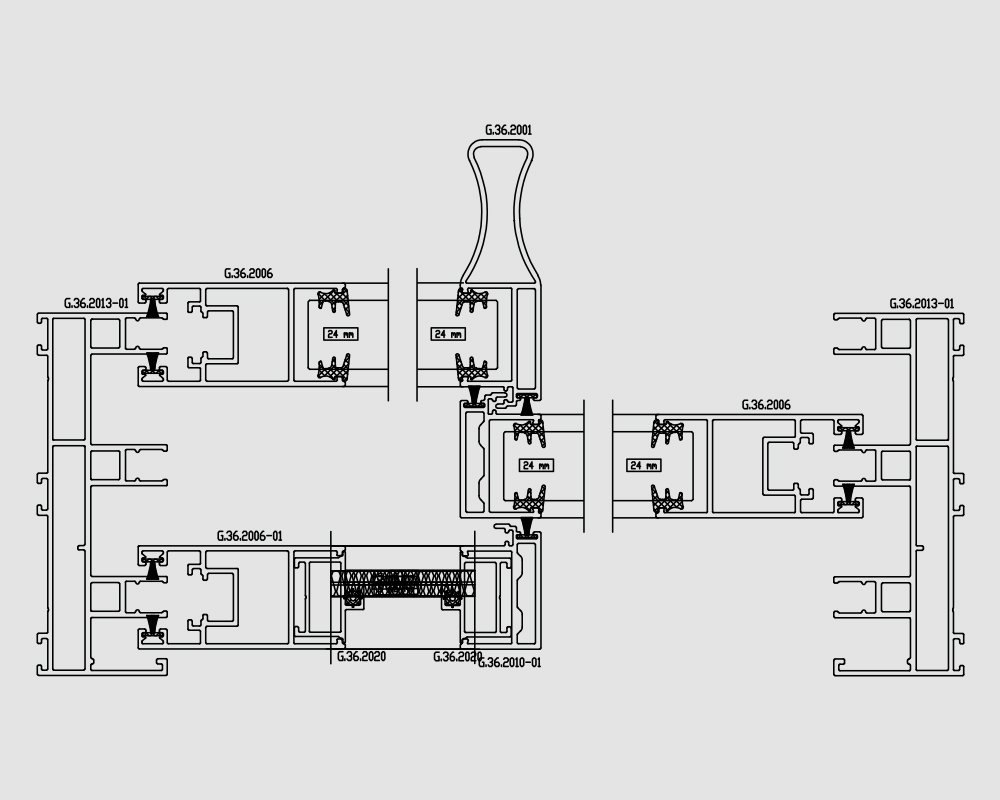

3 Track
